Rotary Drum Washer Machine
Efficient cleaning with a rotating drum and water spray system.
Rotary Drum Washer Machine
Mecceed Machinery is a professional rotray drum washer machine manufacturer in China, specializing in customized solutions for cleaning a wide range of vegetables and fruits efficiently.

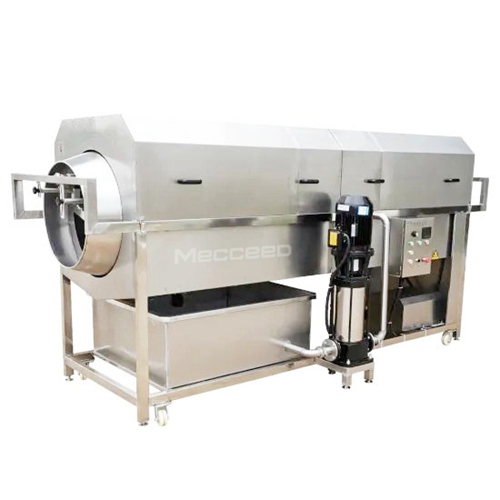

The rotary drum washer machine can be used to clean a variety of products, such as carrots, food packaging bags, and larvae.It cleans the products through a spray system while the products tumble evenly inside the drum.The machine is equipped with a recirculating water tank to save water. The cleaning speed is adjustable via a frequency inverter.
How Does the Rotary Drum Washer Machine Work?
The machine operates by using a rotating drum and a spray system to clean products. The products are tumbled inside the drum, ensuring even cleaning. The recirculating water system helps conserve water, and the cleaning speed can be adjusted through a frequency inverter for optimal performance.
1. Feeding
Products are placed into the machine.
2. Water Spraying and Drum Rotating
Water sprays continuously to wash the products.Optional with brushes to scrub the surface.
3. Water Circulation and Filtration
The circulating water system continuously filters the water, keeping it clean and reducing water consumption.
4. Discharge
The clean products are moved from the outlet for collection and further processing.
Machine Features
Made of SUS304
Machine body is made of high quality 304 stainless steel,durable and sanitary.
Adjustable Speed
Washing speed is VFD adjustable to meet your need.
Water Recycle Used
Configured with water recycle system to save water and envirment protection.
Variety Application
Suitable for washing various vegetables, fruits and seafood. You can use one machine to wash various products.
Tailored to Your Specific Need
Each machine is design to your specific washing product and requirenment.
Easy to Use and Maintain
Minimum traing and mataince cost.
Machine Specifications
| Model/Specification | MEC3500 | MEC4000 | MEC5000 | MEC6000 | MEC8000 |
|---|---|---|---|---|---|
| Washing Capacity | 500kg/h | 800kg/h | 1000-1500kg/h | 1500-2000kg/h | 2500kg/h |
| Rated Power | 1.5kw | 3.75kw | 3.75kw | 7.5kw | 9.5kw |
| Voltage | 380V-3PH-50HZ Or customized | 380V-3PH-50HZ Or customized | 380V-3PH-50HZ Or customized | 380V-3PH-50HZ Or customized | 380V-3PH-50HZ Or customized |
| Machine Size | 3500x1200x1800mm | 4000x1200x1800mm | 5000x1200x1800mm | 5800x1200x1800mm | 8000x1200x1800mm |
A Self-Nomination,Why Choose Mecceed?
Reliable Rotary Drum Washer Machine Manufacturer in China
Helping you clean vegetables and fruits efficiently and safely!
Mecceed has strong manufacturing capability in food processing equipment.
- We follow strict quality control standards and provide comprehensive after-sales service to ensure stable performance and long-term reliability.
- Equipped with advanced production lines and skilled engineers, we deliver high-quality machines that meet the needs of modern food processing.
- We offer direct factory supply, large-scale production, and customized solutions for different cleaning requirements.
- We have exported our machines to over 100 countries and have extensive export experience.
Whether you need a standard machine or a custom-designed one, Mecceed always provides reliable machines and professional support to meet your needs.
Frequently Asked Questions
Our rotary drum washer machine are made of SUS304, which meets food-grade hygiene standards. This material is highly resistant to corrosion, easy to clean, and durable, making it ideal for food processing environments. Additionally, we can offer other specialized materials upon request to ensure the equipment meets specific requirements and industry standards.
The parallel brush washer can wash a wide range of products, such as carrot, corn, nut, seeds, plastic food bag, and larvae, etc.
Yes, the washing speed is frequency adjustable. You can easily adjust the speed through the knob on the control panel to meet your cleaning requirements.
Yes, the machine is designed for efficient water use. It features a circulating filtration system that reuses water after filtration, significantly reducing overall water consumption.
Yes, we can customize the machine according to your production capacity, available space, and specific processing needs. Both the size and functions can be tailored to fit your requirements.
Yes, our equipment complies with CE certification and has been exported to many countries in Europe.
Our typical lead time for production is around 15-30 days, depending on the complexity and customization of the equipment. For standard models, it may be shorter, while customized orders could take a bit longer. Once we confirm the details of your order, we will provide a more accurate timeline.
We ensure the quality of the machines through several rigorous processes.
1. We use high-quality 304 stainless steel and reliable components to guarantee durability and hygiene.
2. During production, each machine undergoes strict inspections and a final performance test upon completion.
3. To provide transparency, we will send you a test video of the machine for your review and confirmation before shipment.
4. Additionally, we offer a one-year warranty and lifelong maintenance support to ensure smooth operation and customer satisfaction.
1.Warranty :Our equipment comes with a one-year warranty,during this period, if any non-human damage or manufacturing defects occur, we will provide free replacements.
2.Lifetime Technical Support: In addition to the warranty, we also offer lifetime maintenance support to ensure the smooth operation of your equipment over the long term.
3.Training:We provide comprehensive technical support and guidance. Our services include detailed operation manuals, setup instructions, and remote assistance through video calls if needed.Online training is completely free.
1. We provide detailed operation manuals, setup instructions, and remote assistance through video calls if needed.
2. If you still have any questions about the operation of the equipment after reviewing the manual and instructional video, feel free to contact us via email or phone at any time. We will be happy to assist you. Online guidance is completely free of charge.
3.We can also arrange for an engineer to provide on-site training, with fees varying depending on the country and duration, but in most cases, online training is sufficient and on-site visits are not necessary.
4.In addition to free online training, we provide lifetime technical support. You can contact us anytime if you have any questions about the machine.
The equipment is delivered as a complete unit. Upon arrival, you only need to connect it to water and power—very simple and convenient.
The equipment is packed in plywood crates suitable for international shipping and reinforced to ensure safe transport. We can ship it to your designated port or directly to your specified location. If you have an agent, they can also pick it up from our factory. If you are interested, please contact us, and we will help you handle all these arrangements.
No worries, we are here to assist you through every step of the process. All you need to do now is get in touch with us,and we will take care of the rest.
