Air Blowing Drying Machine
Efficient air blowing system for fast, gentle surface drying—compatible with automated cleaning lines.
Air Blowing Drying Machine

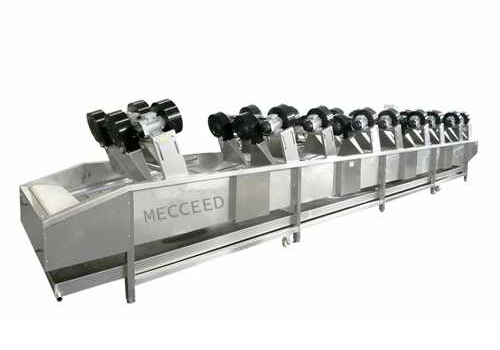

The air blowing drying machine uses multiple high-efficiency air fans to remove surface moisture from materials after cleaning. The airflow is evenly distributed to ensure consistent drying. The fan height can be adjusted to accommodate different products, improving drying effectiveness. The machine supports continuous operation and can be directly connected to a cleaning line, reducing manual handling and improving processing efficiency.
Machine Features
Made of SUS304
Machine body is made of high quality 304 stainless steel, durable and sanitary.
Adjustable Speed
Drying speed is VFD adjustable to meet your need.
Adjustable Fan Height
The fan height can be adjusted to accommodate different products.
Easy to Use and Maintain
Minimum traing and mataince cost.
Machine Specifications
Mecceed mainly offers seven models of air blowing drying machines with different drying capacities. In addition to these seven models, we can also customize machines to meet your specific requirements.
| Model/Specification | MEC3000 | MEC4000 | MEC5000 | MEC6000 | MEC8000 | MEC10000 | MEC12000 |
|---|---|---|---|---|---|---|---|
| Air Blower | 0.75kw*8pcs | 0.75kw*12pcs | 0.75kw*16pcs | 0.75kw*20pcs | 0.75kw*28pcs | 0.75kw*36pcs | 0.75kw*44pcs |
| Conveyor Width | 600mm | 600mm | 800mm | 800mm | 800mm | 1000mm | 1000mm |
| Motor Power | 0.75kw | 0.75kw | 0.75kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
| Voltage | 380V/3PH/50HZ or Customized | 380V/3PH/50HZ or Customized | 380V/3PH/50HZ or Customized | 380V/3PH/50HZ or Customized | 380V/3PH/50HZ or Customized | 380V/3PH/50HZ or Customized | 380V/3PH/50HZ or Customized |
| Machine Dimension | 3000x1050x1470mm | 4000x1050x1470mm | 5000x1250x1470mm | 5800x1250x1470mm | 8000x1250x1470mm | 10000x1450x1470mm | 11800x1450x1470mm |
Frequently Asked Questions
The air blowing drying machine can dry a wide range of products, including
-Vegetables:
tomato,pepper,cucumber,eggplant and leafy vegetables such as spinach, lettuce,etc.
-Fruits:
apple, pear, mango, plum, apricot,etc.
-Others:
plastic food bag, packed products, etc.
The machine is designed to remove surface water effectively. The final moisture level depends on the product shape and surface condition. For most applications, visible water droplets are removed, leaving the surface ready for the next process.
The standard capacity ranges from 200 to 2000 kg/h, depending on the machine model. Custom capacities can be designed for higher or lower production requirements.
The number of fans typically ranges from 4 to 44 units, depending on the machine size, product type, and required output.
The airflow is typically around 2000 m³/h per fan. The exact configuration is determined based on your product characteristics and drying requirements.
Yes, the fan height can be adjusted to suit different products and ensure better drying performance.
Yes, the conveyor speed is controlled by a VFD and can be adjusted according to your production needs.
The standard working width ranges from 600 mm to 1000 mm, depending on the products and capacity requirements.
Yes, the machine can be directly connected to a washing line and integrated into an automated production line.
The machine body is made of stainless steel, ensuring durability, corrosion resistance, and suitability for hygienic applications.
1.Warranty :Our equipment comes with a one-year warranty,during this period, if any non-human damage or manufacturing defects occur, we will provide free replacements.
2.Lifetime Technical Support: In addition to the warranty, we also offer lifetime maintenance support to ensure the smooth operation of your equipment over the long term.
3.Training:We provide comprehensive technical support and guidance. Our services include detailed operation manuals, setup instructions, and remote assistance through video calls if needed.Online training is completely free.
1. We provide detailed operation manuals, setup instructions, and remote assistance through video calls if needed.
2. If you still have any questions about the operation of the equipment after reviewing the manual and instructional video, feel free to contact us via email or phone at any time. We will be happy to assist you. Online guidance is completely free of charge.
3.We can also arrange for an engineer to provide on-site training, with fees varying depending on the country and duration, but in most cases, online training is sufficient and on-site visits are not necessary.
4.In addition to free online training, we provide lifetime technical support. You can contact us anytime if you have any questions about the machine.
The machine requires minimal maintenance. Regular inspection of fans and electrical components is recommended to ensure stable operation.
Yes, the machine is designed for easy cleaning. Routine cleaning after use is sufficient to maintain hygiene and performance.
